Chemistry & Lab Handling

PTD-DBM Reference

Reviewed by Dr. Martina Rossi, PhD

Scientific Contributor and Reviewer · Reviewed

Molecular Profile

Compound

PTD-DBM

CAS number

1609454-11-6

Molecular formula

C124H225N61O28S2

Molecular weight

3,082.64 g/mol, as stated

Amino acid sequence

not stated in the product database

Purity

greater than 99 percent

Physical form

Lyophilized powder

What PTD-DBM is, structurally

PTD-DBM is a single peptide made of two joined segments, and its name abbreviates both: a protein transduction domain, and a Dishevelled-binding motif corresponding to a short region of the human protein CXXC5. The vial holds one continuous chain, not a mixture of two peptides. What either segment is for belongs to the research article.

Two specification fields are empty at source, and both can be filled from the public record. The deposited record for this CAS gives C124H225N61O28S2, which computes to 3082.64, exactly the weight the product page states. It resolves to twenty-five residues that regenerate the formula exactly, an untagged chain with no extra residue or label on either end. The sections below are built on it, with that origin stated plainly.

Read that way, the composition is extreme. Thirteen side chains carry a strongly basic group, ten of them arginine guanidines, and not one is acidic; the only ionizable acid is the C-terminal carboxylate. The molecule is cationic across the whole practical pH range: thirteen basic side chains against one carboxylate and two thiols put its isoelectric point above pH 12, outside the range aqueous work uses. Ten arginines also make it very hydrophilic, so dissolving it is not the difficulty.

The join is a run of four glycines, an ordinary peptide bond no more labile than the rest of the backbone. What distinguishes it is the consequence of a break rather than its likelihood: hydrolysis there gives pieces of roughly 1496 and 1605, each near half the parent mass.

Two sulfurs are exactly the number an intramolecular bridge requires, and the deposited record draws both as free thiols. Whether the supplied material is still reduced that record cannot settle, so handle it as though the thiols are open, a precaution costing nothing either way.

Structure at a glance

Atoms by element in the stored molecular formula, hydrogen left out.
PTD-DBM215 heavy atoms

PTD-DBM: C 124, N 61, O 28, S 2.

Drawn from the product database.

Reconstitution and handling

Sterile water is the default solvent and should take this material up readily. Add diluent down the inside wall of the vial, swirl rather than vortex, and let the solution clarify.

The difficulty is not dissolving the powder but keeping what dissolved. A molecule this positively charged binds avidly to any negatively charged surface: borosilicate glass is a poor choice, its silanols being ionized above roughly pH 3, and low-protein-binding polypropylene is the better default. Adsorptive loss is a general peptide risk, but here one of degree rather than trace: at low concentration the share lost to the vessel can be substantial.

Sterile filtration deserves the same caution: cellulose acetate and other common membranes carry a net negative charge and can deplete a cationic peptide appreciably in one pass. A low-binding membrane and a discarded first fraction are the usual mitigations.

This is laboratory preparation chemistry, not dosing, administration, or protocol guidance of any kind.

Storage and stability

Store the lyophilized powder at -20 degrees C or below, sealed, desiccated and protected from light, and let a cold vial warm before opening so moisture does not condense on it. Reconstituted, hold at 2 to 8 degrees C, or aliquot and freeze rather than thaw one vial repeatedly.

The thiols dominate stability in solution. Dissolved oxygen oxidizes them slowly at neutral pH and faster as pH rises, and trace metals catalyze it, so a near-neutral solution in a clean vessel is the milder condition. The dry solid is far better protected, and desiccation matters because material this charged is hygroscopic.

These are storage conditions for the material, not dosing or administration guidance.

How PTD-DBM is tested

Reversed-phase HPLC establishes chromatographic purity as area percent, and this molecule is awkward on a standard C18 column. With thirteen basic side chains and no hydrophobic block, it retains poorly and elutes early unless the mobile phase supplies an ion-pairing agent, trifluoroacetic acid being the usual choice. An unadapted method can return a flattering figure because nothing was resolved.

Area percent is not peptide content by weight, and the gap is unusually wide here. Each basic site can carry a trifluoroacetate counter-ion: roughly 1480 mass units of salt against 3083 of peptide, close to a third of the gross weight. The product page states the labelled quantity as net peptide content.

Mass spectrometry confirms identity. The average mass is 3082.64 and the monoisotopic 3080.75, and with 124 carbons the monoisotopic peak is not the tallest in the envelope, so establish which basis is reported before reading a difference as modification. A species two units below the average is the closed bridge, not a separate impurity.

These describe general methodology, not a claim about any particular batch.

Handling FAQ

No molecular formula is given on the product page. Is one known?+

The deposited record for this CAS gives C124H225N61O28S2, which computes to 3082.64, reproducing the stated weight exactly, so that figure appears formula-derived. The formula is not carried in the product database.

Why does this peptide need an ion-pairing agent to run properly?+

It carries thirteen basic side chains and no acidic ones, so at the acidic pH of a reversed-phase gradient it is close to fully protonated, with little to bind a C18 surface. Ion pairing masks that charge and restores retention. Full specifications for PTD-DBM.

Dr. Martina Rossi, PhD

Reviewed for scientific accuracy

Dr. Martina Rossi, PhD

PhD, Université Grenoble Alpes · Scientific Contributor and Reviewer

Dr. Rossi's doctoral research at Université Grenoble Alpes examined the vascular functions of bone morphogenetic proteins. Her peer-reviewed work spans cell and molecular biology, vascular biology, and gene therapy, in journals including Cardiovascular Research, Scientific Reports, and Brain Sciences. She reviews Pure Peptides' product, reference, and research pages for scientific accuracy against the sources they cite.

Reviewed ORCIDGoogle ScholarTeam profile →

More Handling References

Reference

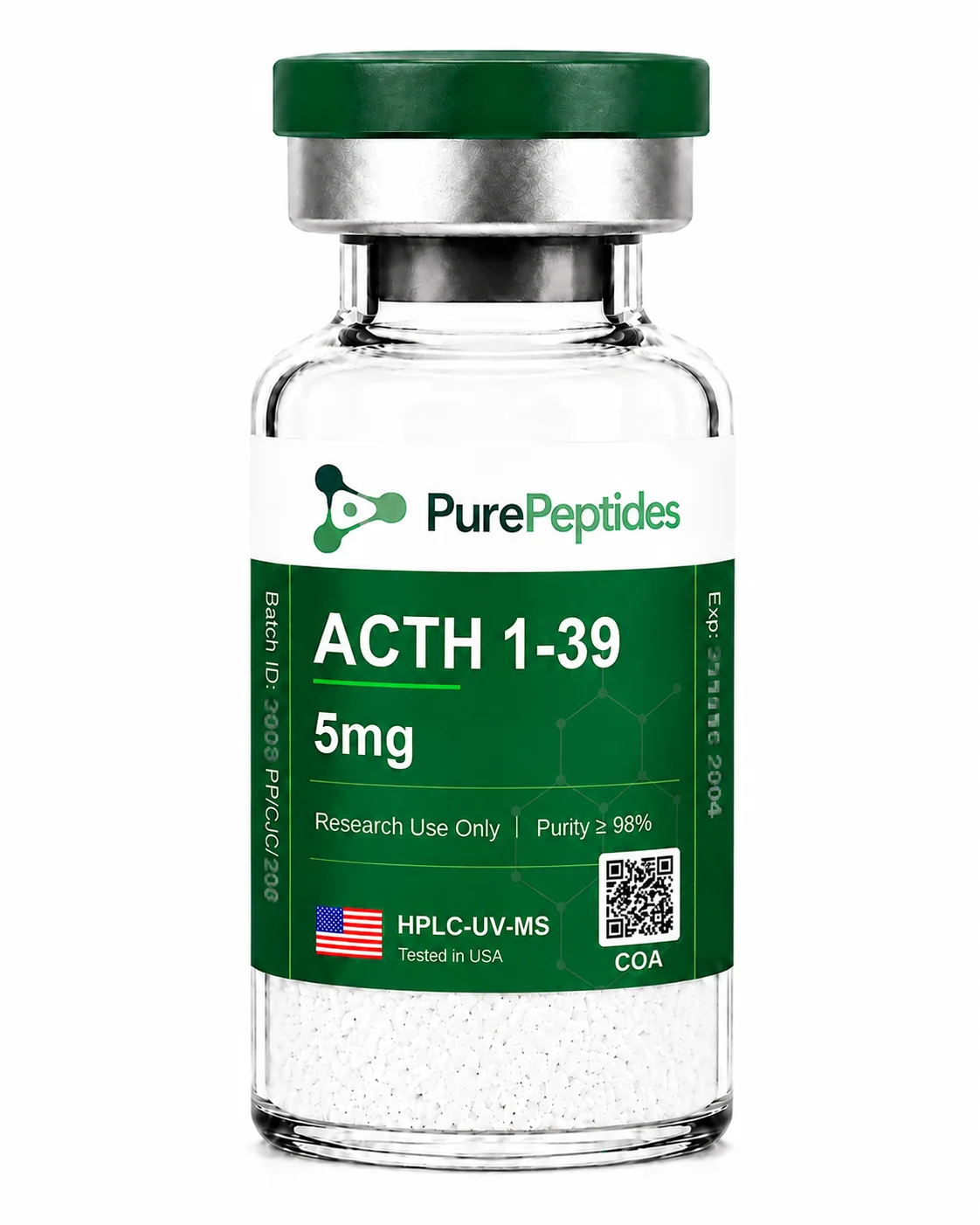

ACTH 1-39

What ACTH 1-39 is chemically and how to handle it in the lab: 39 residue polypeptide structure, reconstitution, storage, stability, and verification.

Read Reference
Reference

Kisspeptin

What Kisspeptin is chemically and how to handle it in the lab: peptide structure, reconstitution, storage, stability, and verification.

Read Reference
Reference

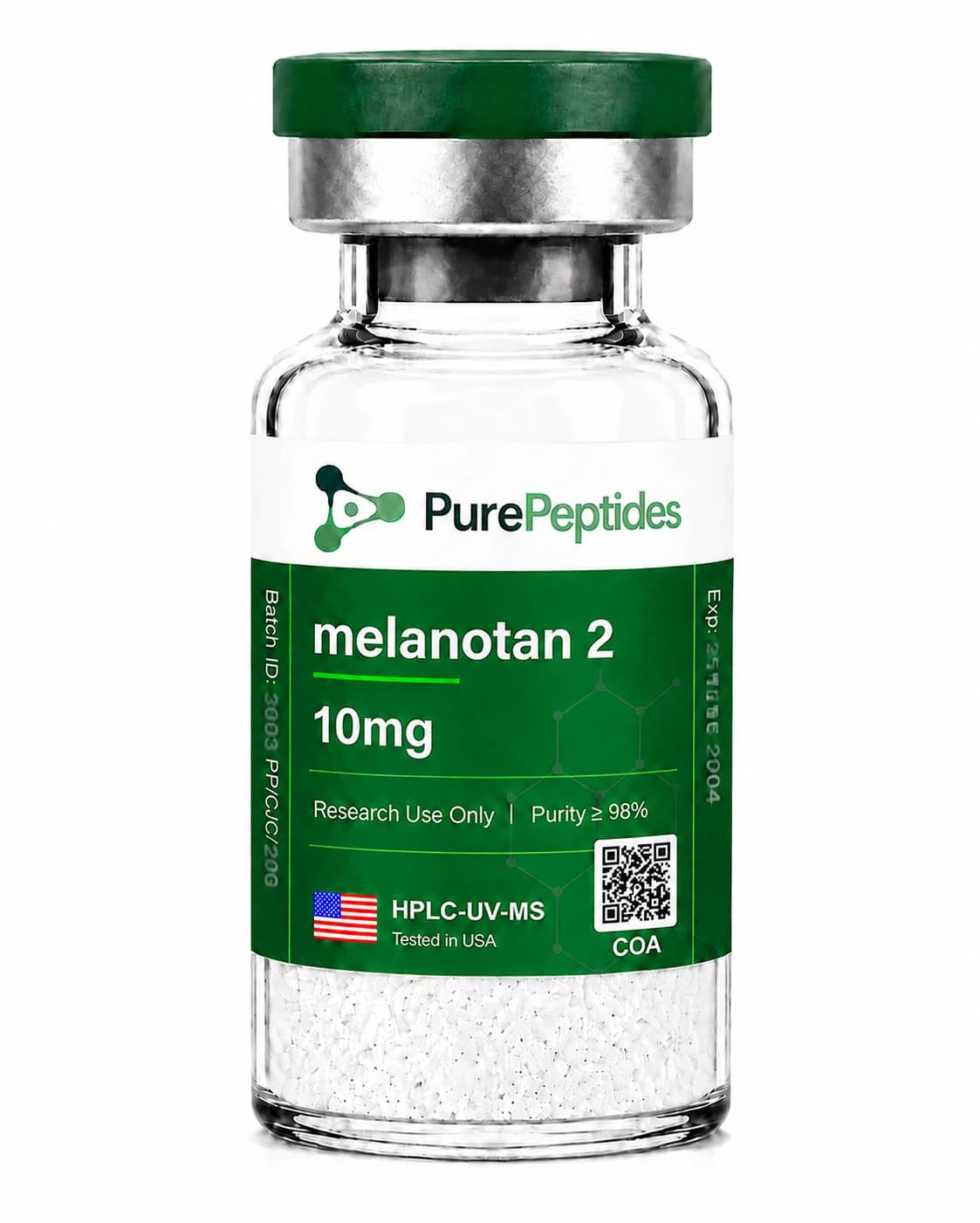

Melanotan-2

What Melanotan-2 is chemically and how to handle it in the lab: cyclic peptide structure, reconstitution, storage, stability, and verification.

Read Reference
Reference

Oxytocin

What Oxytocin is chemically and how to handle it in the lab: nonapeptide structure, reconstitution, storage, stability, and verification.

Read Reference
Reference

PT-141 (Bremelanotide)

PT-141, CAS 189691-06-3, C50H68N14O10, 1025.17 g/mol, purity greater than 99 percent. Cyclic heptapeptide profile, reconstitution, storage, HPLC and MS verification.

Read Reference
Reference

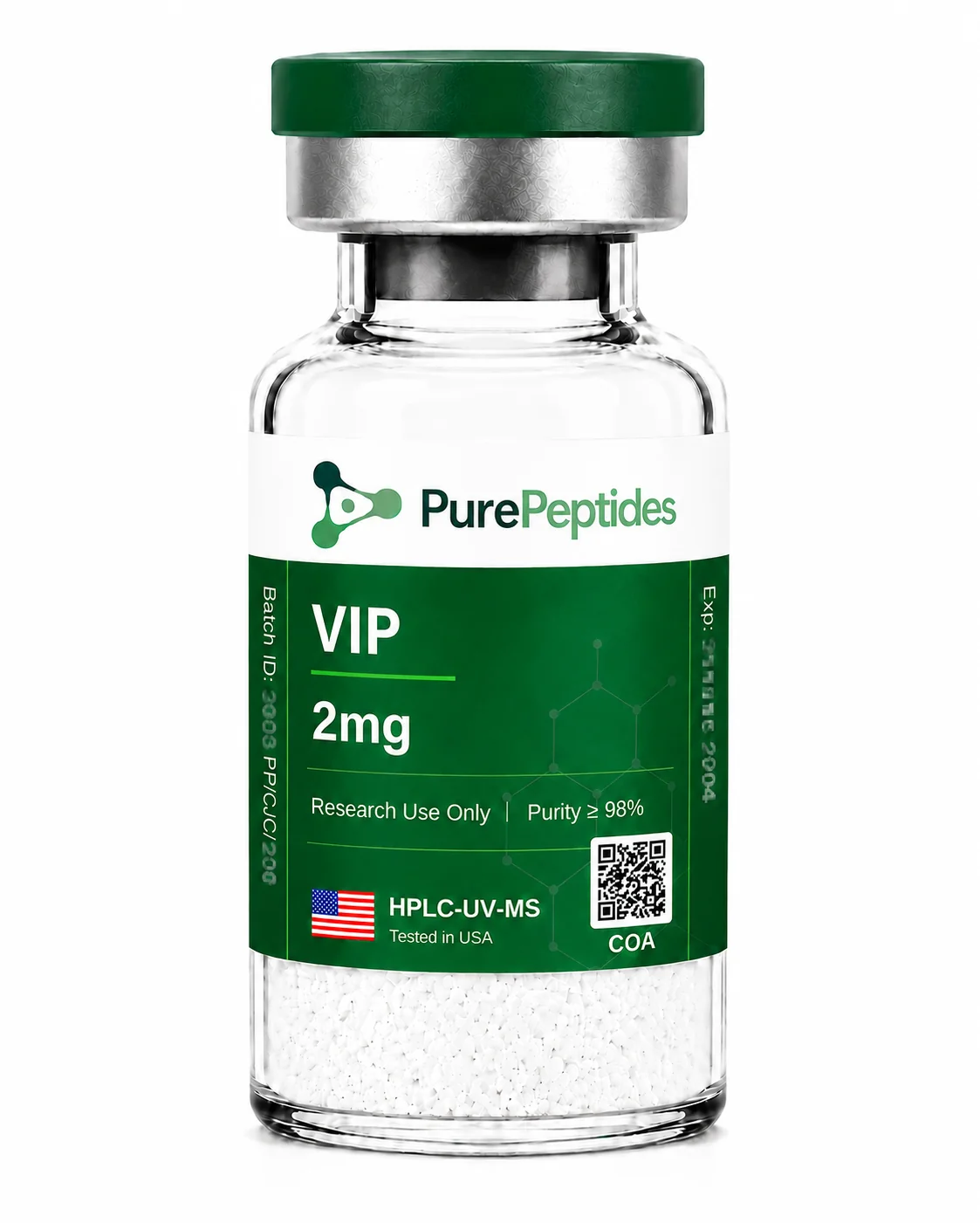

VIP (Vasoactive Intestinal Peptide)
